PICO-LLM Research Pipeline

Modular LLM research pipeline (NYU CSCI-GA 2565) for training and evaluating K-Gram MLP, LSTM, and KV-cache Transformer architectures with 22+ experiment configs and rigorous cross-run analysis.

Token Accuracy 73.21%

GitHub

PyTorchLLMTransformersLSTMKV-CachewandbResearch

What this project proves

Experimentation and evaluation pipeline engineering

Modular LLM research pipeline spanning K-Gram MLP, LSTM, and KV-cache Transformer architectures with cross-run analysis.

Core challenge

Compare multiple language-model architectures without ad hoc experimentation or weak analysis.

Evaluation lens

Experiment reproducibility, metrics analysis, and model-comparison rigor.

A reusable research pipeline with strong evaluation visibility and reproducible results.

Overview

A modular research pipeline for training and evaluating small-scale language model architectures, built for NYU’s CSCI-GA 2565 Machine Learning course. The pipeline supports K-Gram MLP, LSTM, and KV-cache Transformer models with systematic cross-run analysis across 22+ experiment configurations.

The value of this project is not just that it trained several models. It created a reusable experimentation and evaluation pipeline for comparing architectures under the same dataset, metrics, and analysis framework.

What I Owned

Built the modular training and evaluation pipeline
Implemented support for K-Gram MLP, LSTM, and KV-cache Transformer variants
Added experiment tracking and structured cross-run analysis
Produced the comparison tooling used to interpret tradeoffs across architectures and hyperparameters

Best Results (KV-Cache Transformer)

Metric	Score
Validation Loss	1.665
Perplexity	6.389
Token Accuracy	73.21%

See full result interpretation in the README ->

Hard Problems Solved

Compare unlike architectures fairly: the pipeline needed a common harness across MLP, recurrent, and Transformer-style models
Make experiment results legible: raw training logs are not enough; the project adds Pareto frontiers, heatmaps, residual analysis, and correlation views
Preserve reproducibility: deterministic config-driven experimentation is what makes the conclusions useful rather than anecdotal

Model Comparisons

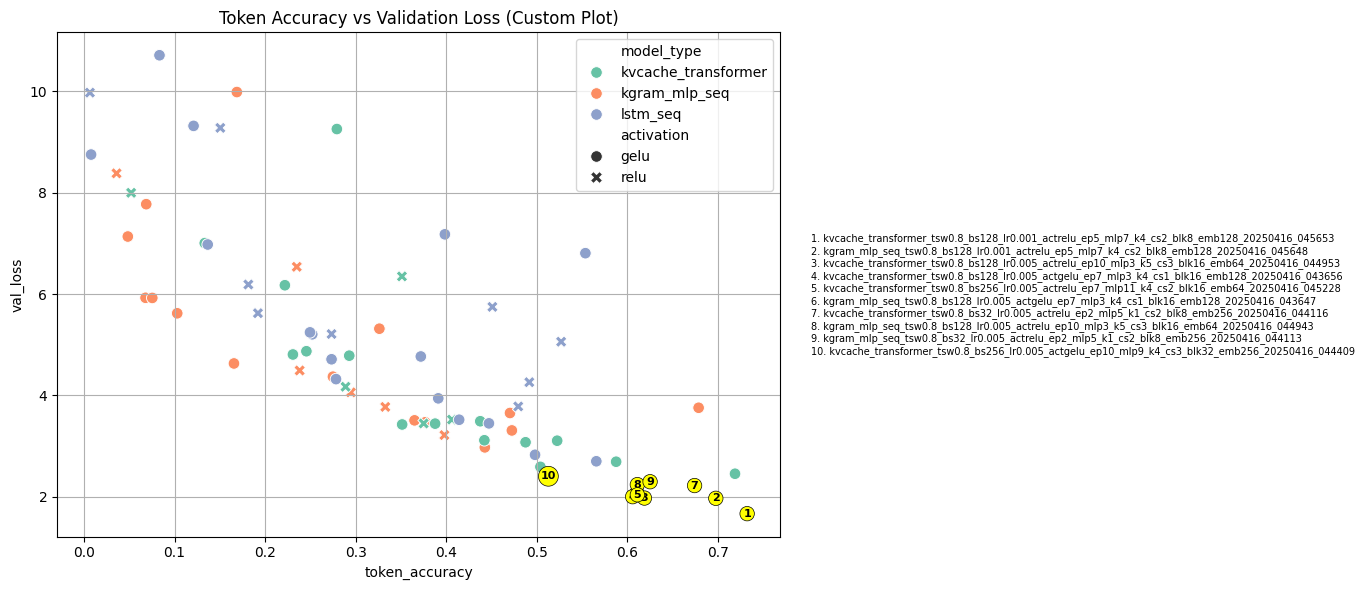

Scatter plot of token accuracy vs validation loss for all experiment runs, colored by model type — Left: Token accuracy vs validation loss across all runs — KV-cache Transformers dominate the high-accuracy region. Right: Pareto frontier overlay identifying the 10 optimal runs.

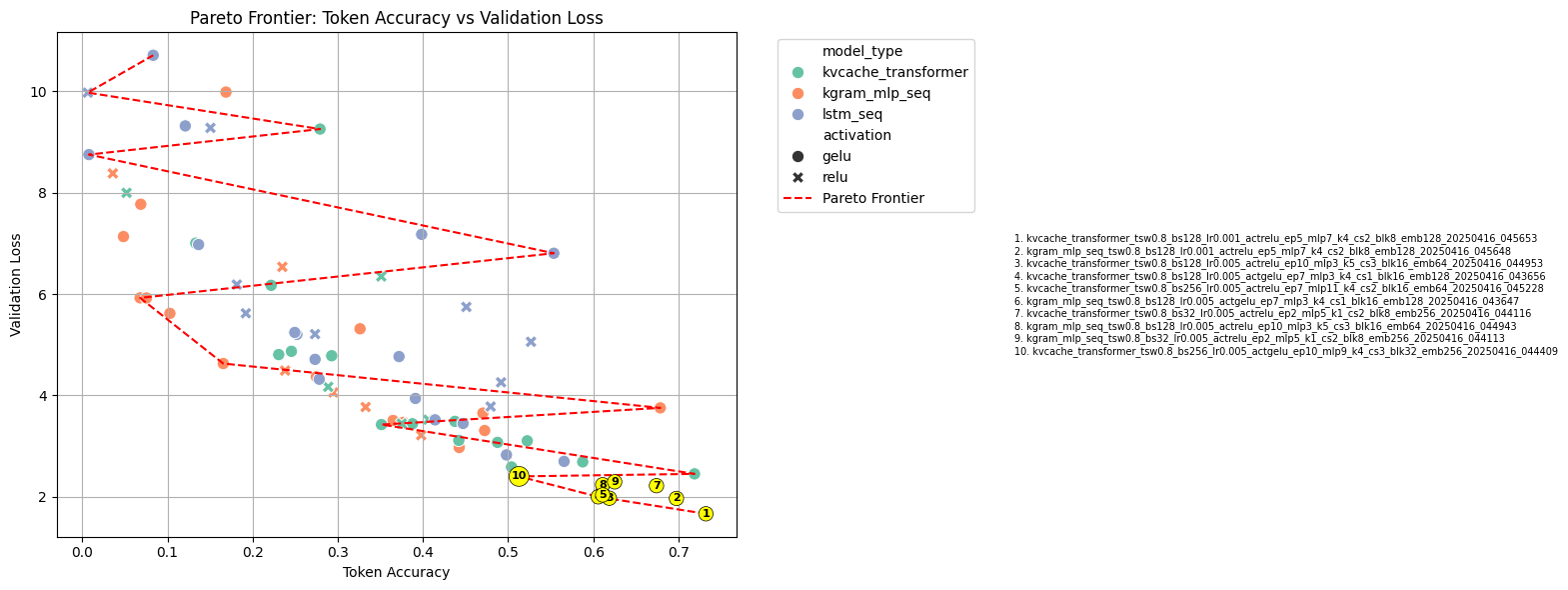

Pareto frontier overlay on token accuracy vs validation loss, highlighting the 10 Pareto-optimal runs — Left: Token accuracy vs validation loss across all runs — KV-cache Transformers dominate the high-accuracy region. Right: Pareto frontier overlay identifying the 10 optimal runs.

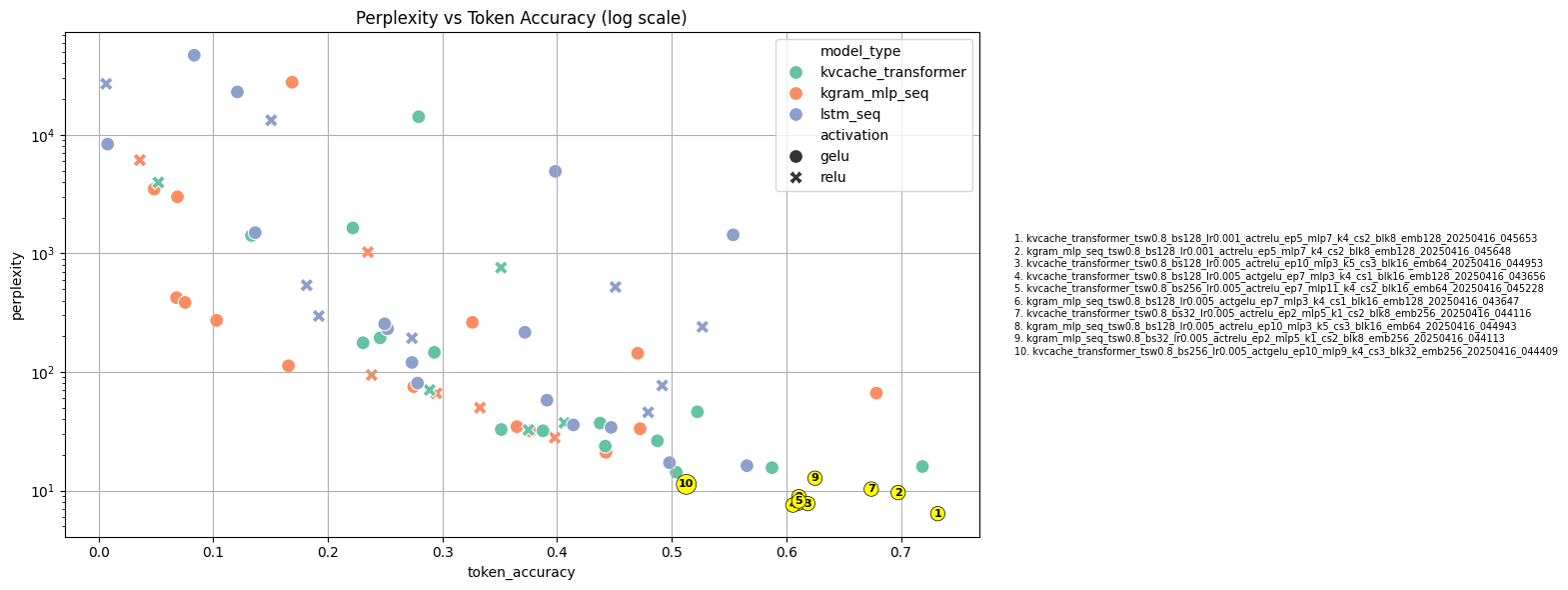

Perplexity vs token accuracy on a log scale, showing exponential drop in perplexity as accuracy improves — Perplexity vs token accuracy (log scale) — the KV-cache Transformer achieves the lowest perplexity at highest accuracy, with LSTM and K-Gram MLP trailing significantly.

Hyperparameter Analysis

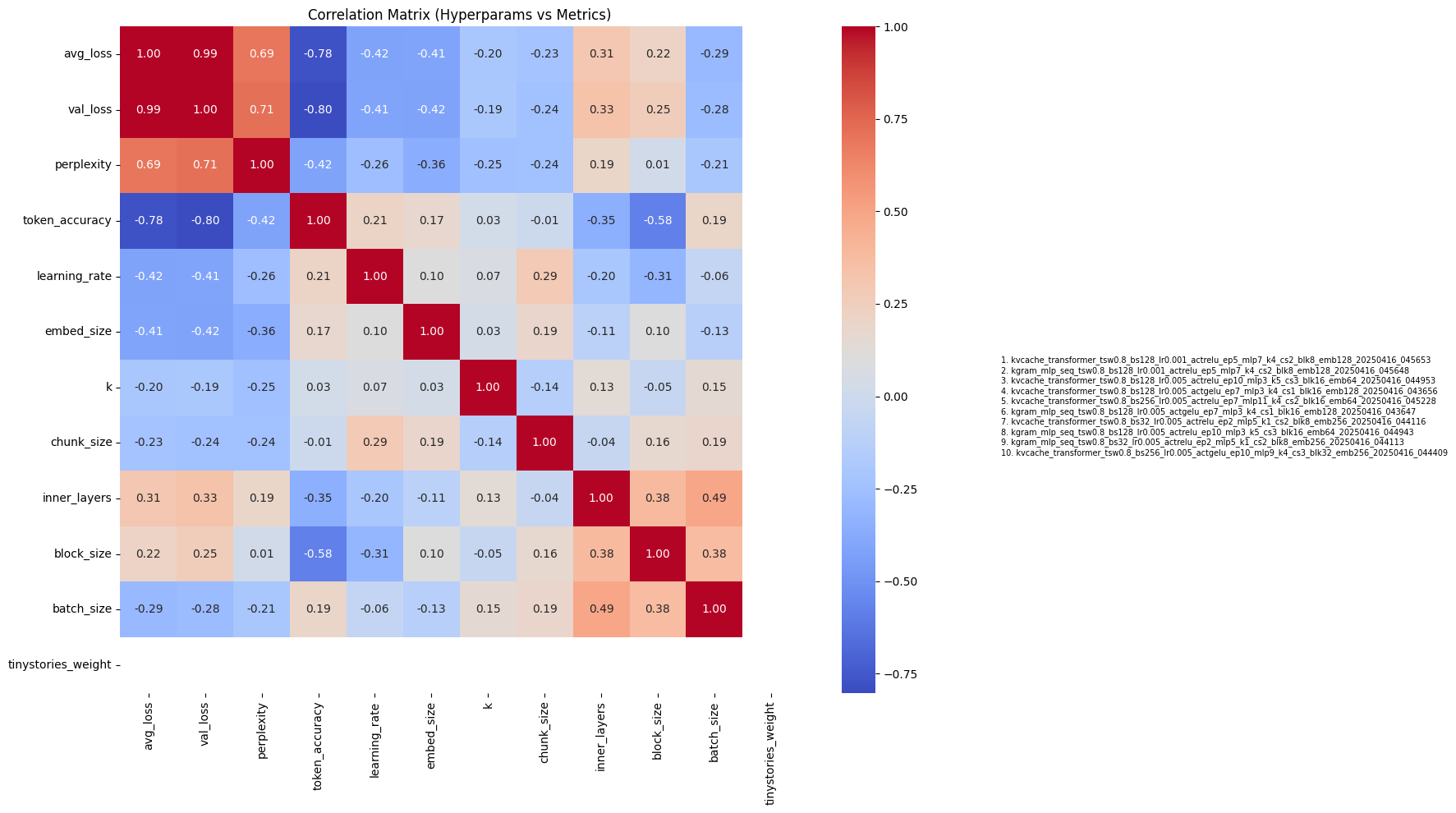

Correlation matrix of hyperparameters vs metrics — token_accuracy strongly anti-correlates with val_loss and perplexity — Hyperparameter correlation matrix — token_accuracy (−0.80 with val_loss) is the strongest signal; embed_size and block_size show meaningful positive correlation with inner_layers and batch_size.

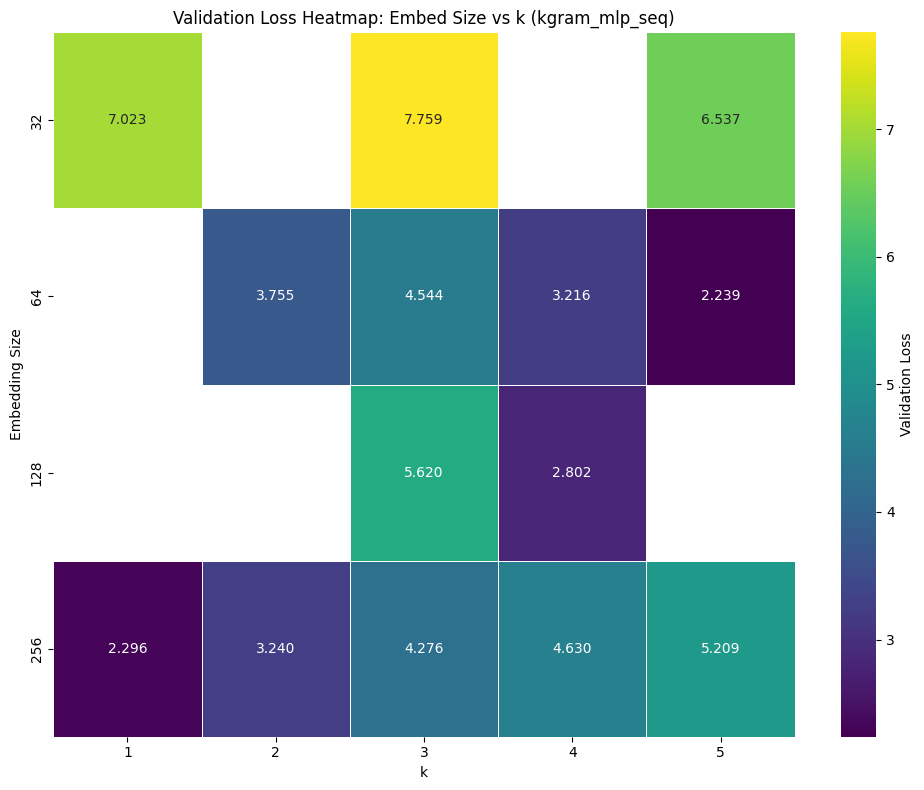

Heatmap of validation loss by embedding size and k for K-Gram MLP — embed=256 achieves lowest loss — Validation loss heatmaps (Embed Size vs k) per model type — larger embedding sizes consistently dominate for both K-Gram MLP and KV-cache Transformer.

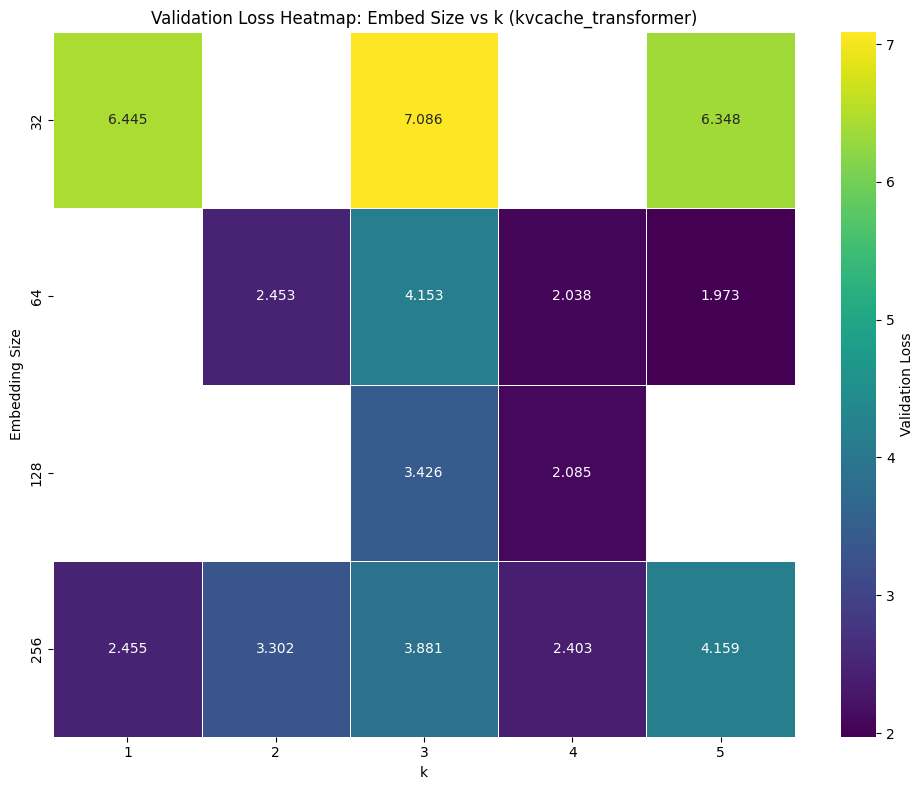

Heatmap of validation loss by embedding size and k for KV-cache Transformer — embed=64 with high k achieves 1.97 — Validation loss heatmaps (Embed Size vs k) per model type — larger embedding sizes consistently dominate for both K-Gram MLP and KV-cache Transformer.

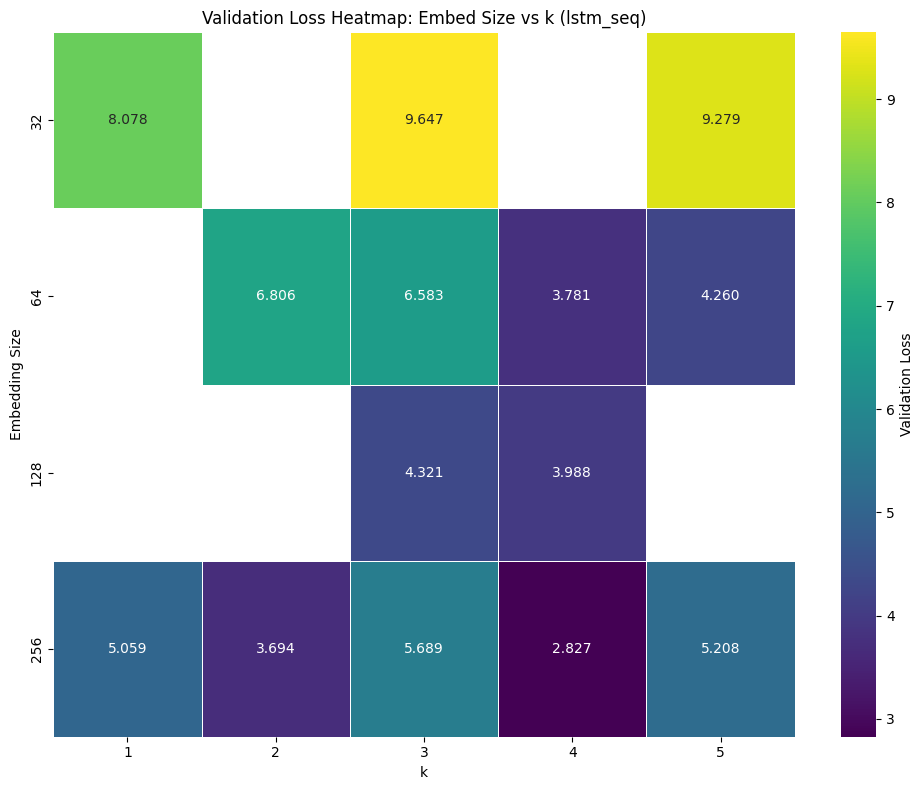

Heatmap of validation loss by embedding size and k for LSTM — more noisy than Transformer or MLP — Left: LSTM validation loss heatmap — higher k and embed size reduce loss but performance lags behind the Transformer. Right: Validation loss vs embed size by activation function — GELU consistently outperforms ReLU across all model types.

Validation loss vs embedding size split by activation function (GELU vs ReLU) for each model type — Left: LSTM validation loss heatmap — higher k and embed size reduce loss but performance lags behind the Transformer. Right: Validation loss vs embed size by activation function — GELU consistently outperforms ReLU across all model types.

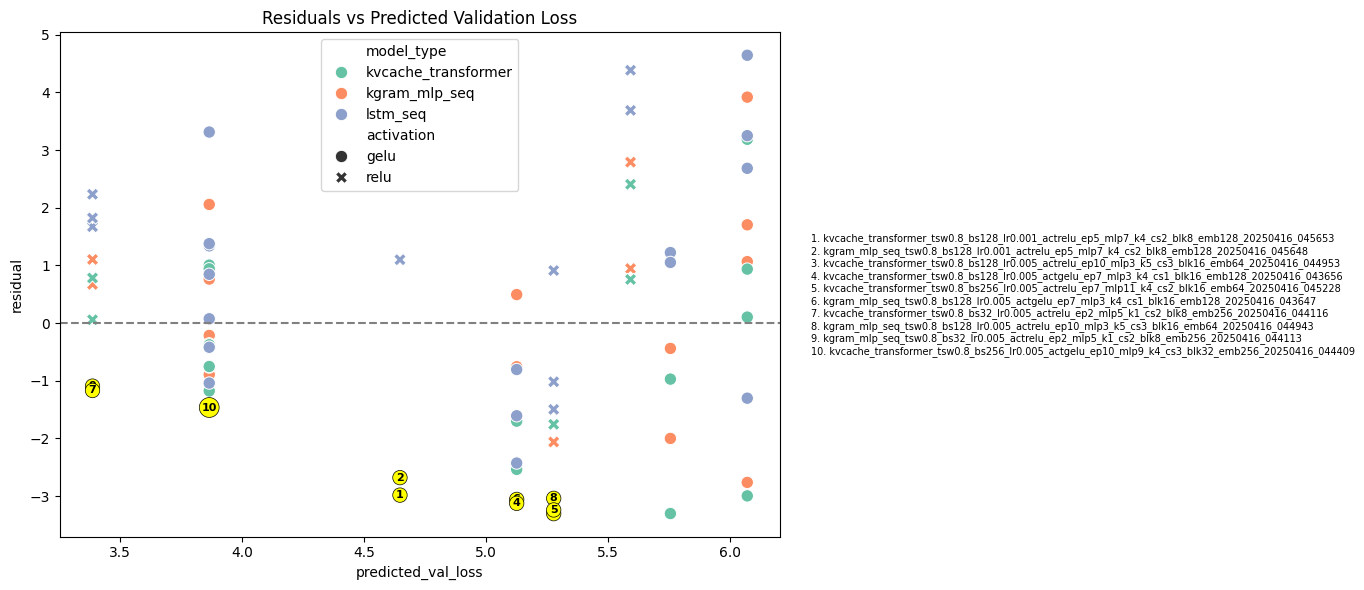

Residuals vs predicted validation loss — LSTM shows the most systematic over-prediction at low loss values — Regression residuals vs predicted validation loss — LSTM runs show the largest systematic bias; KV-cache Transformer residuals are tightest around zero, confirming better predictability.

Key Features

Multi-Architecture Support: K-Gram MLP, LSTM, and KV-cache Transformer training loops with shared evaluation harness.
22+ Experiment Configs: Systematic hyperparameter sweeps and architecture comparisons with deterministic config tracking and multi-model batch training.
Rich Logging: 20+ tracked fields per run (loss, val_loss, perplexity, token_accuracy, gradient norms, learning rate, hyperparameters).
Advanced Evaluation: Pareto frontier analysis, embedding similarity metrics, regression insights, and cross-run statistical analysis.
Configurable Sampling: Greedy, top-p, and repetition-penalty decoding; monosemantic token probing; configurable generation pipelines.
Reproducible: Deterministic seeding and config-driven experimentation throughout.

Why It Matters

This project shows research engineering discipline: not just training a model once, but building the tooling needed to compare architectures rigorously and understand why one setup wins.

Tech Stack

ML: PyTorch, custom Transformer implementation with KV-cache
Experiment Tracking: Weights & Biases (wandb)
Analysis: NumPy, Pandas, Matplotlib
